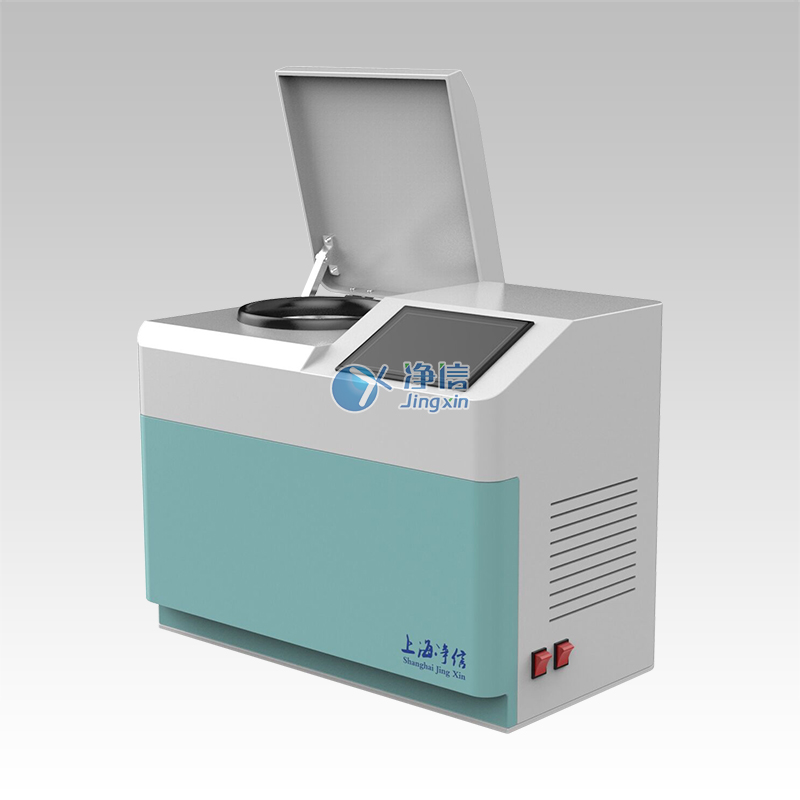

model：jxfstprp-cln-48
brand：shanghai jingxin
specifications ：taiwan
introduction：for difficult-to-grind samples such as high-toughness plastics, high-strength plastics, and resins, low-temperature grinding can greatly improve the grinding effect and efficiency.
jxfstprp-cln-48 (patented product, counterfeiting must be investigated! zl2017305264903) three key elements of sample processing:
○high efficiency grinding-up to 192 samples processed in one batch
○cryogenic grinding-grinding temperature can be customized
○no damage to the sample composition-low temperature protection of the sample composition
sample range: animal and plant tissues, microorganisms, rock minerals, soil, medicine, chemical polymers, etc.
application fields: life sciences, medicine, biochemistry, environment, geology and other scientific research fields
technical characteristics of cryomill:
·adjustable cooling
·fast cooling speed
·large grinding flux
·good grinding effect
·fully enclosed grinding
·stable repeatability
·program can be stored
features:
▷save time and effort
▷high speed and convenient
▷high throughput processing samples
▷ good experiment reproducibility
▷the sample is in a fully enclosed state, no cross-contamination
▷low noise ≤55db: use brushless frequency conversion motor
▷no need to involve liquid nitrogen operation, high safety
▷no wearing parts design, electromagnetic lock protection
▷stainless steel inner cavity, easy to clean and disinfect
▷no need for regular maintenance
the main parameters | parameter range |
application areas: | tissue homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, shaking |
sample processing: | it can handle 48 samples at the same time in 15 seconds, including liquid nitrogen refrigeration adapters that can be used for 12 and 24 positions |
compatible sample volume: | 48*(0.2-0.5ml) /48*2ml /12*(5-15)ml /4*25ml /2*50ml, various specifications of grinding tubes can be customized |
touch screen display: | touch screen display, convenient and intuitive operation |
storing data | ten sets of experimental data can be stored, and animal heart, spleen, lung, kidney, bone, skin, and hair modes are set according to different experimental samples. |
pattern cycle: | according to the set experimental parameters, it can continuously circulate among several set parameters to further reduce the interference of human factors |
feed size | no requirement, adjust according to adapter |
cooling function: | yes, adjustable from -50 ℃ to room temperature |
temperature control accuracy: | 0.5 ℃ |
open cover operation protection: | electromagnetic lock |
discharge size | ~5µm |
the number of grinding platforms (the number of grinding tanks that can be accepted) | >2 |
fastening device with automatic center positioning | yes |
homogenization speed and time: | 0—70 hz/sec, working time: 0 second to 9999 minutes, users can set by themselves; |
range of rotation: | 1000rpm-7000rpm； |
diameter of grinding ball: | 0.1-30mm |
grinding ball kit material: | alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand; |
accelerate: | achieve greater speed in 2 seconds |
decelerate | reach a lower speed in 2 seconds |
noise level: | <55db |
grinding method | wet grinding, dry grinding and low temperature grinding are all available |
refrigeration: | has the ability to upgrade to ultra-low temperature liquid nitrogen refrigeration or air refrigerator refrigeration |
adapter material: | ptfe or alloy steel |
fastening device: | fastening device with automatic center positioning, safety lock when working, full protection |
grinding kit material: | hard steel, ptfe (teflon) zirconia |
opening method: | smart start |
dimensions | 700mm*380mm*500mm |
weight | 75kg |
